Amesbury,  Wiltshire  -  St Mary and St Melor Church
12th Century onwards

Click on photos to enlarge
Notes in italics from Wiltshire by Nikolaus Pevsner Revised by Bridget Cherry (1975) Yale University Press, New Haven and London

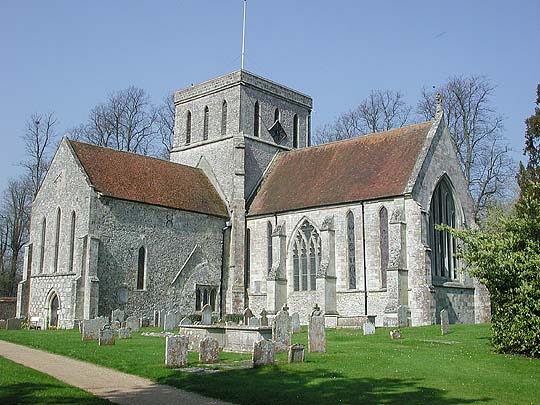

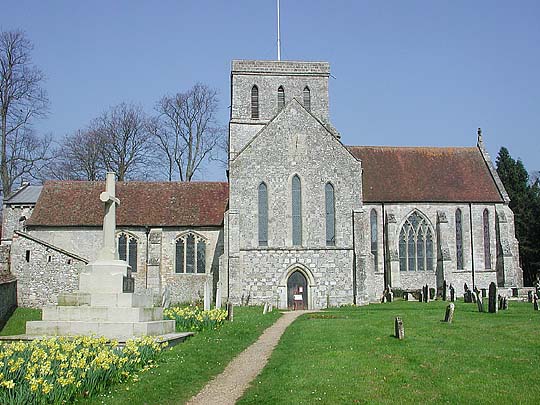

South east
Chancel, north inside
A medieval priory church, originally Norman, see nave details below. Perpendicular south aisle to the nave (on left of first picture). ... But the noble appearance of the church, as we now see it, is essentially E.E. The crossing tower has three widely-spaced single bell-openings, ... the transepts have three stepped lancets on the end walls  and single lancets otherwise ... the chancel long single lancets - interrupted by two early C14 windows of much larger size, one with cusped intersected tracery with a big pointed quatrefoil spread out at the top (south side), the other with reticulated tracery (north side). They are not in line.

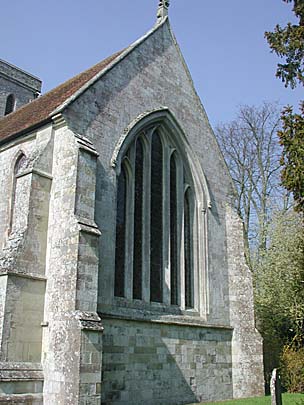

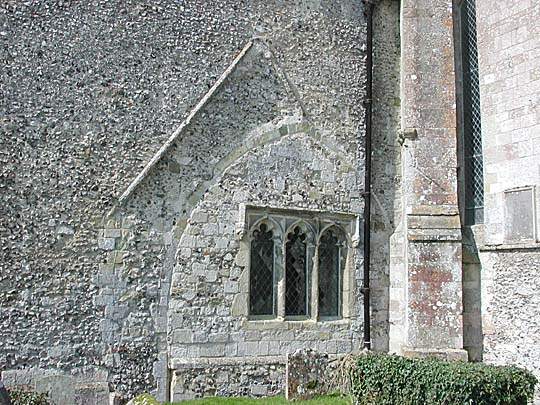

South transept, east

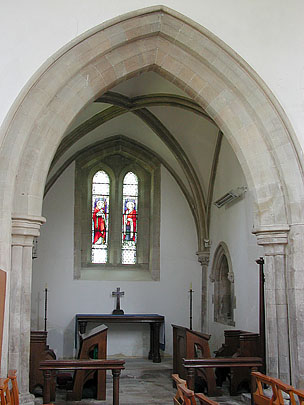

Dscn1779-u2-540-u0.5.jpg (59845 bytes)           Dscn1795-levdrkmid1.30-u2-405-u0.5-high.jpg (37602 bytes)

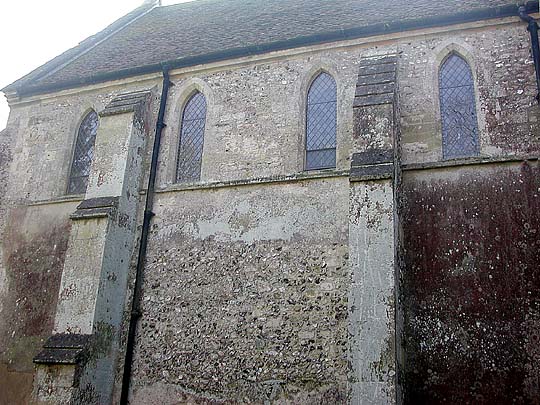

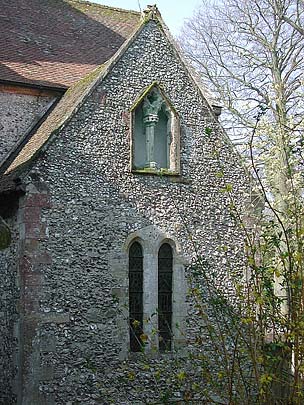

N transept, E chapel

Against the E sides (of both transepts), the outline of a chapel can be seen which stood against the chancel.

The N transept has in addition a second, outer E chapel, and that has remained intact, except that the pretty late C13 twin window in the gable with its shaft, its leaf capital, its pointed-trefoiled light, and its quatrefoil above is said to be reset.

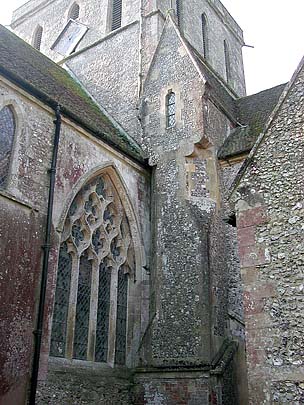

Dscn1782-levdrkmid1.20-u2-540-u0.5.jpg (78344 bytes)         Dscn1783-levdrkmid1.20-u2-540-u0.5.jpg (47391 bytes)

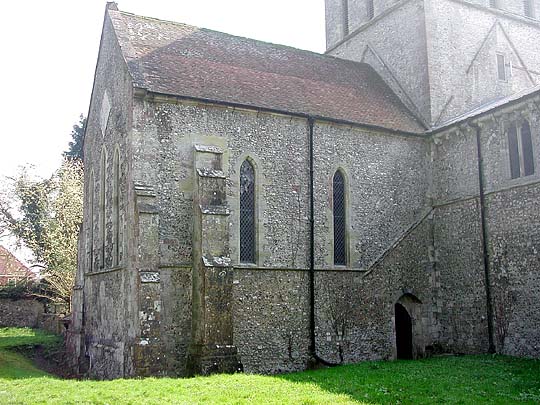

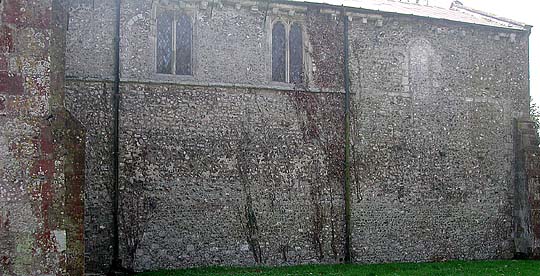

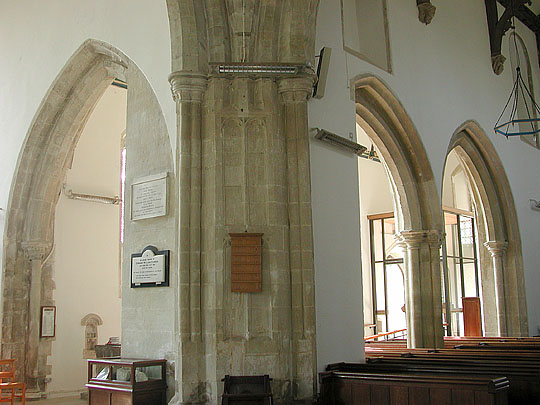

Chancel north and Crossing, north east

The E window is by Butterfield, who restored the church in 1853 ..

Butterfield provided, concealed from the eye of the passer-by, one of his most violent designs as a turret in the NE corner of the crossing.

Dscn1781-levdrkmid1.20-u1-540-u0.5.jpg (68862 bytes)  Dscn1780-crp-levdrk-u2-540-u0.5.JPG (56122 bytes)  Dscn1791-levdrkmid1.30-u2-540-u0.5-high.JPG (63603 bytes)

North transept, west

The nave, cut short at some later date, is basically Norman, as is proved by the corbel table on both N and S sides, the two blocked clerestory windows visible on the outside, and the three blocked ones on the S (visible inside).

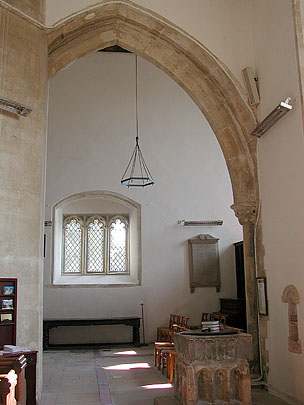

Dscn1789-levdrkmid1.40-u2-405-u0.5-high.JPG (46149 bytes)    Dscn1784-levmid1.15-u2-540-u0.5-high.jpg (65025 bytes)   Dscn1786-levdrkmid1.40-u2-405-u0.5-high.JPG (33098 bytes)

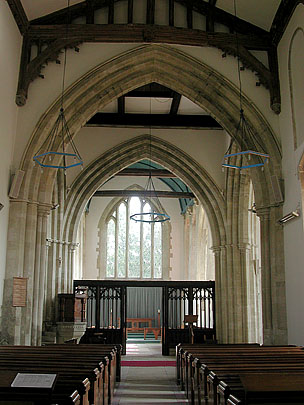

View from nave through crossing to chancel.
The crossing tower rests on triple-chamfered arches. Thin triple-shaft responds with moulded capitals.

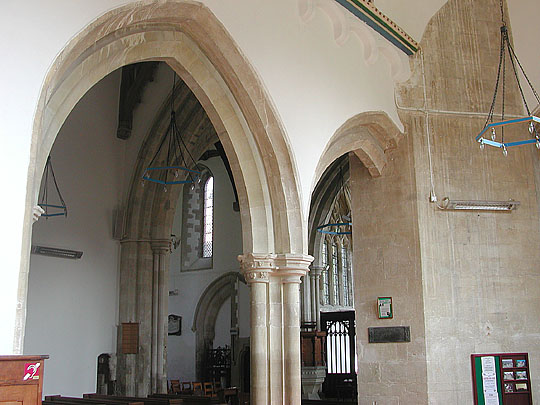

The S aisle is Early Perp, see the two-bay arcade with pier of the well-known section of four shafts and four hollows. Decorated capitals, arches of two hollow chamfers.

South transept
from south aisle.

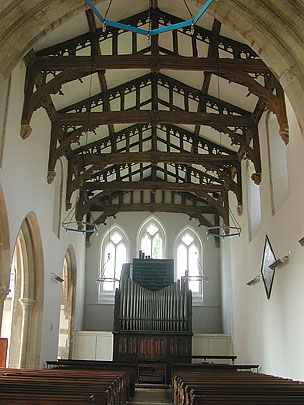

Nave, looking west

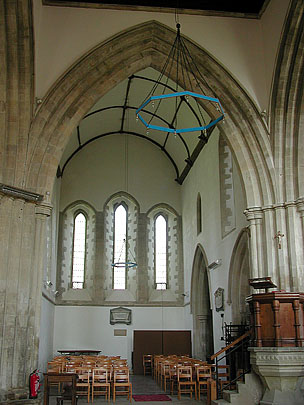

North transept

Good roofs nearly everywhere: in the nave low pitch, tie-beams on arched braces, ...

in the transepts and aisle ceiled wagon roofs ... .

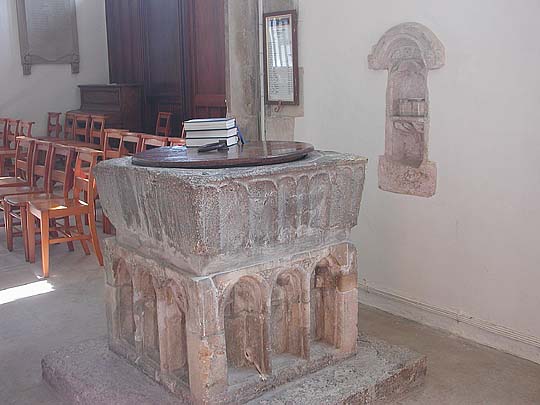

 Square, Norman, of Purbeck marble, with the familiar very shallow blank arches.

In Chancel

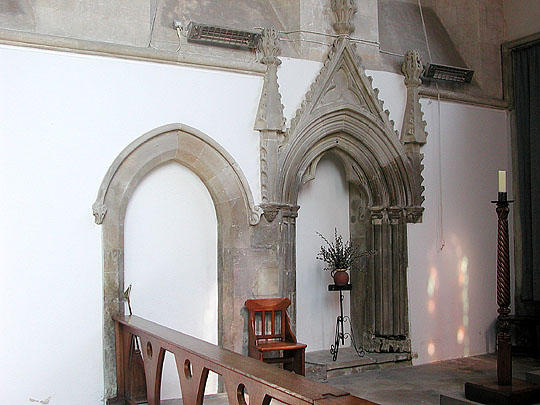

A small doorway with hood-mould on stiff-leaf stops and a tall, rather crude arch with openwork cusping, crocketed gable, and buttress-shafts. It must be c.1300, and was probably a substitute for an Easter sepulchre.
